Reliable firing for all commercially-available materials.

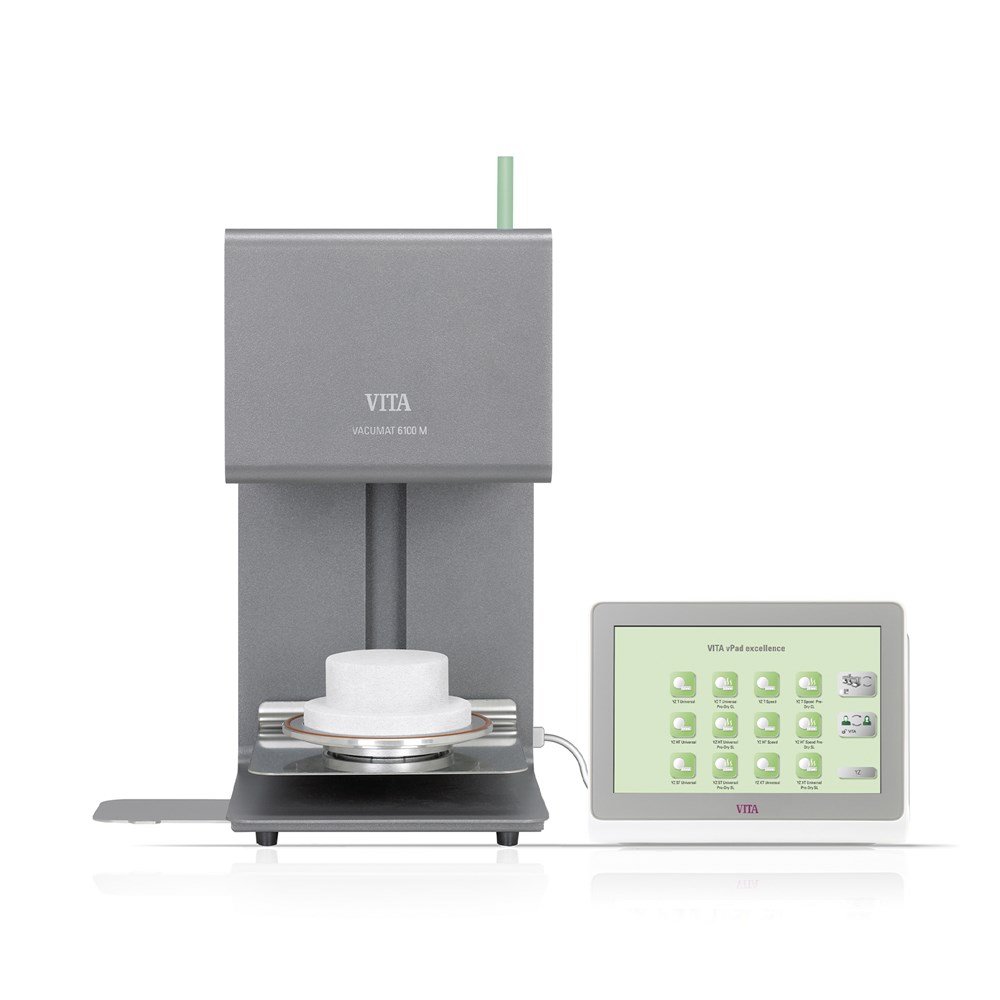

The VITA VACUMAT 6100 M is a fully-automatic, microprocessor-controlled firing unit. The firing unit is ideal for all dental ceramic firing requirements. The furnace impresses with superb quality and esthetics,  and offers outstanding firing results, user safety and convenience. Thanks to its optimum ergonomic design, the furnace takes up a minimum amount of space. Two integrated cooling trays support safe storage of fired objects.

Modern furnace technology
Innovative firing technology and high-tech materials inside the firing chamber for even better homogenous heat distribution.
Reliable and long service life
Durable firing muffle – Made in Germany – and reliable electronics for consistently excellent firing results.
Comfort and safety
A wide variety of monitoring and service programs for maximum working convenience, safety and time savings.

The VITA vPad control element is required to operate the furnaces.

Technical functions
Service and monitoring programs, e.g. automatic temperature adjustment before every start of the program, temperature and vacuum control, counter for operating hours of firing muffles
Power failure protection
Adjustable vacuum values, adjustable pre vacuum and main vacuum
Lift monitor, adjustable lift speed
Freely adjustable lift positions for pre-drying and slow cooling
Fast cooling to standby temperature

Technical data
Chamber diameter: 90 mm
Chamber height: 55 mm
Firing temperature: max. 1200°C

Accessories (purchased separately):
VITA vPad LITE / VITA vPad PRO
Vacuum pump or Vacuum pump II
VITA MultiPump
